MonnitSense Newsletter - October 2014
Featured Product

Water Temperature Sensors

Monnit Water Temperature Sensors

Have an application, where you need to monitor water temperature? Monnit's wireless water temperature sensors use a 3ft external water sealed sensor probe to measure temperatures in water or non-combustible liquids. Perfect for monitoring temperatures in water storage tanks, pools, aquariums and natural wetlife environments. User customization allows you to set the frequency of readings and the ability to set conditions for text and/or email notifications from the system.

Features of Water Temperature Sensors:

    • Accurate to +/- 1°C (1.8°F)
    • Temperature range:
      -40° to +125°C (-40° to 257°F).
    • 3 ft sealed temperature probe*
    • Available in standard, industrial
      and Wi-Fi versions.

For more information on Monnit's Wireless Water Temperature Sensors see the following.

Monnit Wireless Water Temperature Sensors »

In this issue

What People are Saying

"I am impressed with these wireless sensors! They do exactly what we need them to, and have already saved us from a few issues with our walk-in coolers and freezers."

– Lajuana Wimberley, Llano Independent School District

Glimpse of the future
Elderly and Children

New Industry Best MEMs Based CO Sensors!

New Monnit Carbon Monoxide Sensors Imminent danger of CO poisoning is a growing concern in the care for elderly, child and immuno-compromised individuals. Monnit's new wireless carbon monoxide (CO) sensors are the only sensors available in the industry that can be powered by a single coin cell battery while maintaining premium performance specifications and long life.


Smart CO Sensors from $99


Features of Monnit's new carbon monoxide sensor:

    • Measurement range of 0-1000 PPM
    • +/- 1 PPM Resolution
    • Accurate to ± 2% of reading or 1 ppm
    • Ultra-low power and small size (available two formats)

          • Coin cell powered carbon monoxide (CO) sensors
                - Smallest size sensor at only 1 in (w) x 1 in.(h) x 0.79 in. (d)
                - Powered by a single CR2032 coin cell battery
                - Battery will last ~ 1 year (at 1 hour heartbeat)
          • AA battery powered carbon monoxide (CO) sensors
                - Only 3 in (w) x 2.1 in.(h) x 1.27 in. (d)
                - Powered by 2 AA batteries
                - Batteries will last 2+ years (at 1 hour heartbeat)

    • Alerts contain CO level in PPM
    • Customizable alerting based on specified CO levels
    • CO levels are recorded (data logged) in system at every heartbeat

Learn More About Monnit Wireless Carbon Monoxide (CO) Sensors »

Web Special
Monnit Web Special

Glimpse of the future

Crystal Ball

Let's take a look in our crystal ball to see what the future holds at Monnit

Monnit's development team is hard at work developing new features for iMonnit users. In response to requests from several customers, we are making voice call alerts available from the iMonnit system. Voice call alerts are able to be sent to any phone whether cellular or landline, providing an audible description of the sensor alert. While we are able to provide SMS text alerts and email alerts for free, the phone calling system will work via pre-purchased credits. The new voice call options will be available in the very near future. If you would like to learn more about this feature or be notified when it is available, please email us at sales@monnit.com.

back to top

Application of the Month

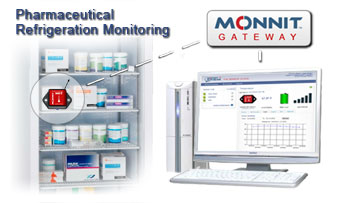

Pharmaceutical Refrigeration Monitoring

Using wireless sensors to monitor pharmaceutical refrigerators.

With Monnit wireless sensors you can ensure that medications, vaccines and other pharmaceutical products have been maintained under recommended storage temperatures. It can be expensive if a pharmaceutical refrigerator fails but Monnit provides the solution.

With Monnit Wireless Sensors you can have 24/7 monitoring of your refrigeration units and be notified immediately if there is an issue. The monitoring system will also track temperature data for you and provide a detailed report as well as spreadsheet export functionality. Enjoy the peace of mind that comes from using Monnit wireless sensors to help manage your pharmacy.

Monnit provides a low-cost, reliable, wireless monitoring solution that allows you to track conditions and receive alerts for the following types of applications:

Temperature Sensors Monitor temperatures in pharmaceutical refrigerators and coolers.
Motion Sensors Monitor for unauthorized access to the pharmacy or drug storage areas.

All Monnit wireless sensors come with free basic online monitoring, allowing you to view sensor information anytime from anywhere. Receive instant notifications via email or SMS text if a set sensor condition is met or exceeded.

Ensure your medications and vaccines are stored within regulated temperatures!

Learn More About Pharmaceutical Monitoring Solutions »

back to top

Tech Tip of the Month

by The WiSe Guys

WiSe Guys

Using Monnit Wi-Fi Sensors
with iMonnit Express PC Software

This tech-tip is meant to give instructions for using Monnit (MoWi) Wi-Fi sensors with the iMonnit Express local PC application. The iMonnit Express software allows you to track sensor data directly on your PC without having to send the sensor data to the online system. Some of the benefits of using iMonnit Express are that you can run a wireless monitoring system behind a company firewall and you can also collect sensor data more rapidly than the online system (faster heartbeats). For product documentation and additional help visit www.monnit.com/support.

Note: The computer running iMonnit Express and the Wi-Fi sensors need to be connected to the same Wi-Fi network.

Add Wi-Fi Sensors to iMonnit Express

    • Make sure your pc is connected to the internet
    • Start iMonnit Express
    • Add the Wi-Fi Sensor to Express

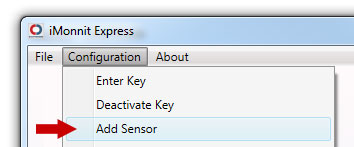

            • Click Configuration
            • Click Add Sensor
Add sensor to iMonnit Express

            • Type in the sensor Number
            • Type in the sensor Code
            • Click Save. This should download the sensor from iMonnit and add it to the list.

    • After all Wi-Fi Sensors have been added go to the list and click on the first Wi-Fi Sensor
            • In the overview page for this Wi-Fi Sensor you will need to click on the "Edit" tab.
            • Scroll down to find Wi-Fi Configuration
            • Type in your Server Host Address and add your PC's IP Address.

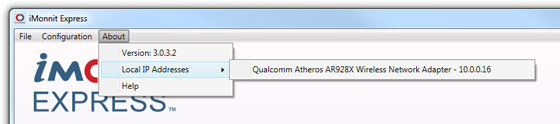

(If you are not sure how to find your Computers IP Address click "About" at the top of Monnit Express. When it drops down, you will see local IP Address, hover your mouse over the arrow and the local IP address will be displayed.)


Find computer IP address in iMonnit Express


Configure Monnit Wi-Fi sensors to access the Wi-Fi network and iMonnit Express

    • Download and install the MoWi USB cable driver by following the instrustions at
      www.mowisensors.com.
    • Download the Monnit Wi-Fi programming utility from www.monnit.com/support/downloads
      under "Monnit Wi-Fi (MoWi) Sensors".
    • Install and run the Wi-Fi Sensor Utility.
    • Connect the Wi-Fi sensor to your computer via a Monnit Wi-Fi programming cable.
    • Click the drop down for Wireless Network SSID and select "Search for Networks".
    • Select your Wi-Fi network from the list (the security type should update automatically).
    • Enter the Key/Passphrase for the Wi-Fi network.

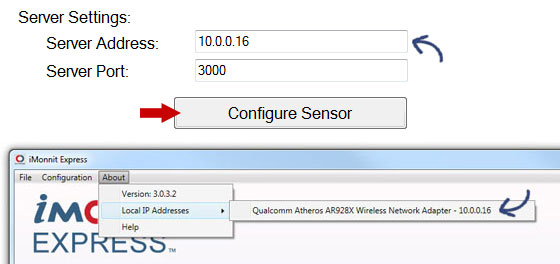

    • Click Advanced Settings.
            • In Server Address put in the IP Address of the computer that has iMonnit Express on it.
            • Server Port by default is 3000 unless you have changed that setting in iMonnit Express.

Enter IP Address of Computer into iMonnit Express

    • Click Configure Sensor.
    • The sensor will be configured then tested to make sure it can:
            - Connect to the Wi-Fi router.
            - Connect to the iMonnit Express program running on the computer (so make sure express
               is still running and that the Sensor has been added to the list of sensors).
    • If the sensor successfully connects to the Wi-Fi router and iMonnit Express, unplug the sensor
      from the usb cable (it is now ready to use). If the sensor did not connect successfully, repeat
      the programming steps.
    • Plug in any additional Wi-Fi sensors and repeat the programming steps until all Wi-Fi Sensors
      are configured.

For more information on using Monnit wireless sensors, visit the support section of our website.
