Top Story
Leads: Put the Sensor Where the Measurement Matters
Strict quality and safety regulations in pharmaceuticals, food services, healthcare, and related cold-chain logistics continue to drive demand for temperature data-logging sensors. In Europe, the temperature data-logger market is forecast to grow from $121.6 million in 2025 to $153.4 million by 2030 (MarketsandMarkets). Similarly, analysts expect the European market for cold-chain data loggers to rise from $330.1 million in 2024 to $493.3 million by 2030 (Grand View Research).
Given this ongoing growth and ever-present regulation, remote monitoring with state-of-the-art sensors is critical across many industry applications. However, a sensor doesn't always belong where compliance measurements are taken. For example, a freezer can be at −80°C, a duct can be difficult to access, a tank may be impossible to monitor from the outside, or an oven can be too hot for the electronics.
That's where a lead or leaded probe connected to a sensor becomes more than an accessory; it's a key component of the monitoring solution. It lets you place the sensing point exactly where you need it while keeping the wireless sensor base easily installed, accessible, and protected.
Why Use a Lead?
A leaded probe or lead primarily separates the sensing point from the sensor's electronics and battery. Additionally, you can:
- Track conditions inside freezers and refrigerators without placing the sensor electronics inside them.
- Monitor ovens, ducts, motors, tanks, and pipes where the measurement point is difficult to access.
- Protect the sensor electronics from moisture, condensation, heat, and physical damage.
- Keep the sensor accessible for battery replacement.
- Choose the right distance with lead lengths from 3 to 100 feet.
We typically ask, "Where exactly do you need to measure?" If the answer is inside something, in a hard-to-access location, or in a hostile environment for electronics, we recommend sensors with leads.
Real-World Applications
Why do leads matter commercially? Pharmaceuticals, life sciences, healthcare, and food & beverage are among the largest application segments in the European cold-chain/temperature data-logger markets. These are precisely the environments where remote sensing with leads can solve installation and accessibility challenges.
Pharmaceutical Labs & Ultra-Low-Temperature (ULT) Freezers
Vaccines, pharmaceuticals, and research samples may need to be stored in ULT freezers. The measurement point is inside the freezer, but there's no reason to put the wireless electronics and battery there. Monnit's ALTA® Wireless Low Temperature Sensors are for applications that need ULT freezer and refrigerator storage monitoring.
Food Services & Cold-Chain Monitoring
Food producers, warehouses, and distributors need to monitor temperature throughout refrigerated and frozen environments. A lead lets you position the sensing element inside the refrigerator or freezer while keeping the sensor base outside and accessible. Consider cold rooms, commercial freezers, food warehouses, production areas, and distribution facilities.
Industrial Facilities & Processes
The measurement point may be inside a process tank, pipe, industrial oven, HVAC duct, production machine, or enclosure. The lead lets you position the probe at the point of interest while the sensor electronics stay outside the process or away from equipment.
Tech News
Sensing Success Depends on Lead Considerations
The application or use case you're measuring needs the right sensor and the right lead for the job. When you're selecting an ALTA® Temperature Sensor with a lead, for example, it's important to consider:
- Is a fixed or detachable lead best?
- What lead length do I need?
- What temperature range do I need to measure?
- Where exactly is the measurement point?

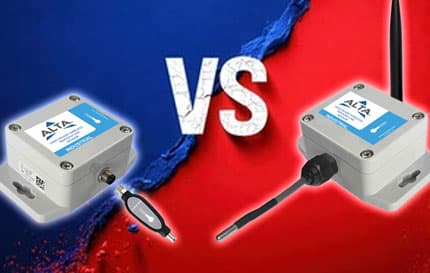

Fixed Leads vs. NIST Detachable Leads
You can select ALTA Standard and Low Temperature Sensors with fixed-lead probes. These leads are permanently attached to the sensor base.
- Standard has 3 / 10 / 25 / 50 / 100-foot lead options.
- Low has 3 / 10 / 25-foot lead options.
- Standard measures -40°C to 125°C.
- Low measures -200°C to 0°C.
- Send the sensor and fixed lead for recertification.
New NIST Detachable Leads (leaded probes and non-leaded probes) are hot-swappable. Leaded probes can be 3, 10, 25, or 50 feet long (Standard Temperature) and can be replaced in the field without replacing the installed sensor base.
- Sealed M8 6-pin connector: Compatible with ALTA Enterprise and ALTA Industrial sensor bases.
- Minimise monitoring downtime: A certified replacement lead can be installed while the original lead is sent for recalibration.
- Calibration travels with the lead: The lead stores its identification, calibration information, and traceability data.
- Automatic recognition: Compatible ALTA Sensor Bases recognise the connected lead and record connection/disconnection information in iMonnit®.
Which NIST Detachable Lead Is Appropriate?
| Application | Recommended Lead |
|---|---|
| Standard temperature monitoring | NIST Detachable Standard Temperature |
| Cold chain / low-temperature applications | NIST Detachable Low Temperature |
| Temperature-sensitive regulated applications | NIST Detachable Standard Temperature |
| Humidity monitoring | NIST Detachable Humidity |
| Compliance / calibration-driven environments | All NIST Detachable Leads |
NIST Certification
- Standard Temperature: 25-month NIST certification
- Low Temperature: 13-month NIST certification
- Humidity: 13-month NIST certification
Application Considerations
Don't start with: "Do you need a lead?"
Start with: "Where is the actual measurement point?"
- Is the measurement point inside a freezer, refrigerator, oven, duct, tank, or pipe?
- Do the sensor electronics need to remain outside?
- Is access to the measurement point difficult?
- Does the application require calibration or traceability?
- Would replacing the complete sensor create downtime or additional validation work?
If the answer to any of these questions is yes, you need a lead. If calibration, compliance, and serviceability are important, you need a NIST Detachable Lead and compatible ALTA Sensor Base.
A lead may look like a small piece of hardware or accessory. But it can solve a very important problem: It puts the measurement exactly where it needs to be, without putting the sensor where it shouldn't be. Think measurement point. Think application. Think lead.
Solution Spotlight

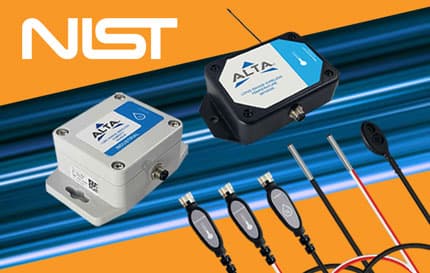

NIST Detachable Leads: Simplify Monitoring, Recertification, and Installation
Keeping temperature and humidity monitoring accurate, calibrated, and traceable can get complicated when you have to remove an entire wireless sensor for recertification. Our new NIST Detachable Leads and compatible ALTA® Industrial and Enterprise Sensor Bases provide a simpler approach: hot-swap the lead while leaving the installed sensor base in place.
Available NIST Detachable Leads include Standard Temperature, Low Temperature, and Humidity versions, along with short Standard Temperature and Humidity Detachable Non-Leaded Probes.
Keep Monitoring While Leads Are Recertified
With the detachable design, you can hot-swap a certified lead in minutes. You can then send the original lead for recalibration while the newly certified lead keeps the monitoring point active. This approach can reduce maintenance time, maintain compliance, minimise monitoring interruptions, and avoid the added work associated with replacing an entire sensor.
Calibration Travels with the Lead
Each NIST Detachable Lead contains embedded memory that stores important identification and calibration information. This allows the lead to carry its certification and traceability information throughout its service life.
Stored information includes:
- Lead and sensor identification
- Calibration information
- Certification data
- Traceability records
Compatible ALTA Sensor Bases automatically recognise the connected lead and record connection and disconnection events in iMonnit® Software.
Engineered for Regulated Applications
NIST Detachable Leads are designed for organisations that require documented calibration and traceability. Applications include pharmaceutical and life-science facilities, healthcare, laboratories, food production, manufacturing, and research environments.
The leads use a sealed, keyed M8 6-pin connector designed for reliable field installation and can be replaced while the sensor is powered on or off.
NIST certifications are available for:
- Standard Temperature: 25-month certification
- Low Temperature: 13-month certification
- Humidity: 13-month certification
Keep the Sensor & Only Replace the Lead
Monnit's detachable-lead architecture changes the traditional recertification process. Instead of removing an installed sensor, organisations can keep the sensor base in place, replace only the certified lead, and maintain monitoring while the original lead undergoes recertification.
For regulated environments, that means less downtime, simpler servicing, and better visibility into calibration and traceability, all while keeping the measurement point operational.
